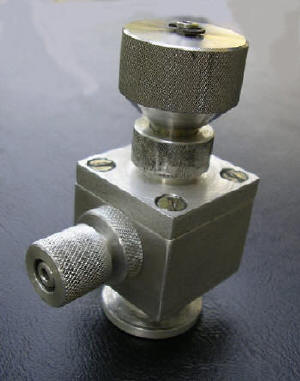

Manual Variable Leak Valve
The manual variable leak valve MVLV 01 is made of aluminium alloy. It is designed for reproducible and smooth regulated non-corrosive gas flow leaking in a vacuum systems.
TECHNICAL SPECIFICATIONS
| Adjustment range | mbar.l/s | 1.10-5-100 |
| Connecting flange | KF ACC. to ISO | 16 |
| Leak rate | mbar.l/s | <1.10-8 |
| Dimensions | mm | 85x50x36 |
| Weight | kg | 0,25 |
AVAILABLE ON REQUEST
The manual variable leak valve, made of stainless steel with Teflon gaskets for corrosive gases applications. ↑ Back to top
